Adding Material to User Library

You can add a material to a user library. The material must be available in the current layout of the 3D world and not already stored in user and system libraries. The material is saved in a Materials.xml file stored in the My Materials folder of your Visual Components Premium 4.10 documents.

1. On the MODELING tab, in the Geometry group, click the Tools arrow, and then under Material, click Assign.
2. In the Assign material task pane, expand Materials, and then find a layout material.
3. Right-click the material, and then click Add to User Library.

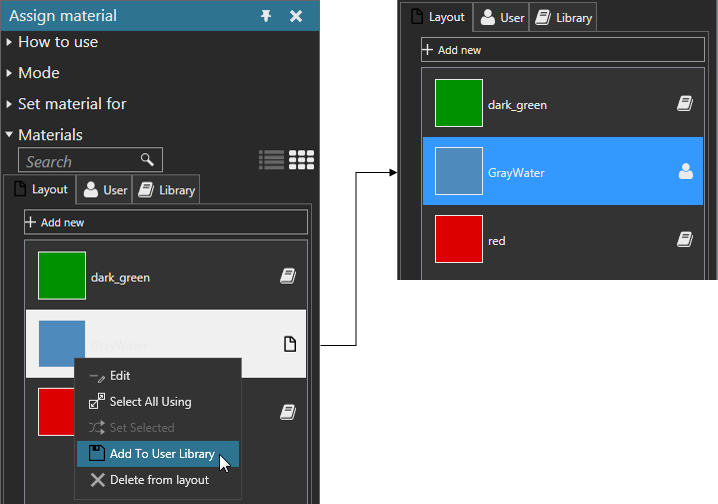

Example. Add a layout material to user library
