Send Signal

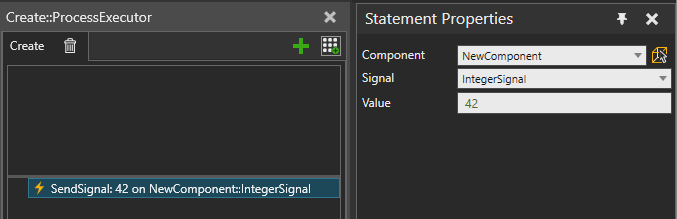

A Send Signal statement allows you to trigger a signal behavior with a given value. You can select a Boolean, Integer, Real, String or Component signal from any static component in the simulation layout.
Properties
| Name | Description |
| IsEnabled | Turns on/off the execution of this statement. |
| Component |
Component that owns the signal. Null means this component. |
| Signal | Signal to send. |
| Value |
An expression to generate the value for the signal. This can reference e.g. static properties or properties in dynamic products. See also Process Statement Expressions. |
