WPS (Welding Procedure Specification) tab

NOTE: This topic is only applicable to the following Robotics OLP products:

• Visual Components Premium OLP
• Visual Components Professional OLP
• Visual Components Robotics OLP

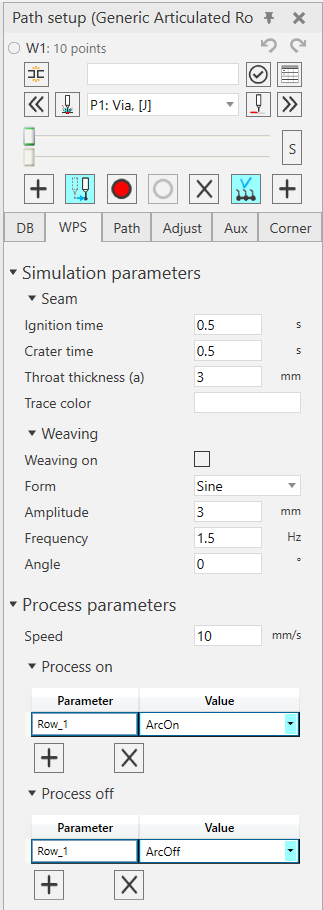

Simulation parameters: Parameters for visualizing the welding during simulation.

Note: Modifying these parameters does not have affect to real robot program.

• Seam: parameters for weld seam visualization
• Weaving: parameters for simulating weaving

Process parameters: Set the welding parameters for the active weld. With many controllers, it’s a reference to some welding parameter table in robot controller.

• Speed: Welding speed in mm/s
• Process on: The values are called when the arc is turned on. The parameters in Process on include the Job no, weaving info etc.
• Process off: The values are called when arc is turned off

Create new row

Remove row

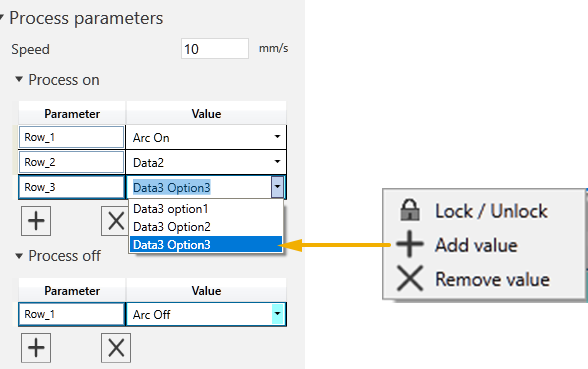

For a single Process parameter, you can also add list of possible Values by using the Add value option.

To remove the value, use the X option.

Further, the value can also be locked and unlocked.
