Routing Rule

A Routing Rule allows you to route components to and from different containers based on one or more levels of conditional statements.

The ports of a Routing Rule are listed with the behavior in the Component Graph panel.

Properties

Name	Description
Name	Defines the name of the router.
Statistics	Defines the Statistics behavior that collects statistics generated by the router.
Capacity	Defines the amount of components the router can manage at any given time.
Capacity blocks	Defines a list of Capacity Controller behaviors for globally defining the router's capacity. Generally, a Capacity Controller is used as a variable for controlling the capacity of one or more containers in order to avoid deadlock situations.
Transition signal	Defines a Boolean Signal to signal the arrival and departure of a component in the router. A True value signals the arrival of a component. A False value signals the departure of a component.
Rule component	Defines if rule processing is done for the router's component or a component contained by the router.
RetainOffset	Turns on/off the ability to retain position of component as it passes through route.

Connectors

A Routing Rule uses ports/connectors to connect to other behaviors and transfer in and out components.

Name	Description
Add new connector	Adds a new port to router. Shortcut: In the Component Graph panel, right-click a Routing Rule behavior, and then click Add Connector.

Route

A route is defined using one or more rules that form a nested structure. In some cases, rules can directly route to a connection/port. In other cases, a rule can use another rule to determine the route of a component. In all cases, changing a rule will undo all of its child rules. As a last resort, some rules allow you to define a default connection or rule.

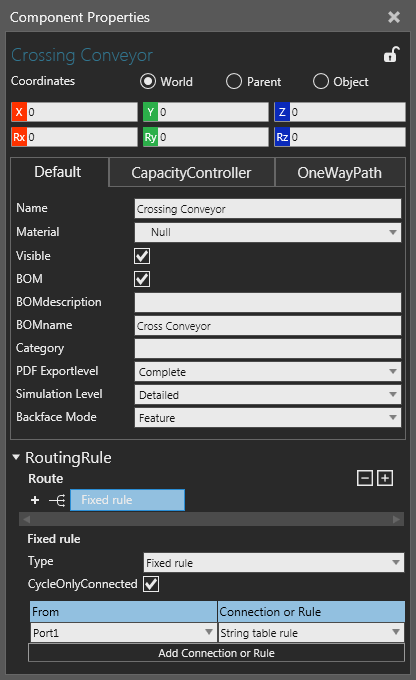

Tip: You can edit the route of a Routing Rule in the Component Properties panel.

Types of Rules

Name	Description
Boolean Table	Routes components to a selected port based on a True or False value. Variable Defines which property of either processed component or owner component is evaluated by the rule. Default Used if the value of Variable does not match any listed value in table.
Capacity	Routes components to the first selected port that passes a capacity test.
Cyclic	Routes components to selected ports in sequence before repeating the same cycle. CycleOnlyConnected Can be used to only route to ports that are connected to other ports.
Fixed	Routes components from a selected port to another selected port. CycleOnlyConnected Can be used to only route to ports that are connected to other ports.
Integer Table	Routes components to a selected port based on an integer value. Variable Defines which property in either processed component or owner component is evaluated by the rule. Default Used if the value of Variable does not match any listed value in table.
Percentage	Routes components to selected ports based on a percentage distribution. RandomStream Can be used to seed a value. In all cases, the total percentage for all selected ports should add up to 100.
<Port>	Routes components to a selected port. For example, all incoming components of router would exit the selected port. Generally, only available as a level 1 rule.
Product Type Rule	Routes components to a selected port based on a selected Product Type or Flow Group. Default Used if the value of Variable does not match any listed value in table.
Real Table	Routes components to a selected port based on a real number value. Variable Defines which property in either processed component or owner component is evaluated by the rule. Default Used if the value of Variable does not match any listed value in table.
String Table	Routes components to a selected port based on a string value. Variable Defines which property in either processed component or owner component is evaluated by the rule. Default Used if the value of Variable does not match any listed value in table.
Transport solution rule	Routes products to a selected port based on the transport solution. RuleVariable Defines which transportation node of processed product is evaluated by the rule. Note: Rule processing is done only for products contained by the router.
Product Type rule	Routes products to a selected port based on the Product Type. RuleVariable Products can be routed based on Product Types or Flow Groups.
