Components tab

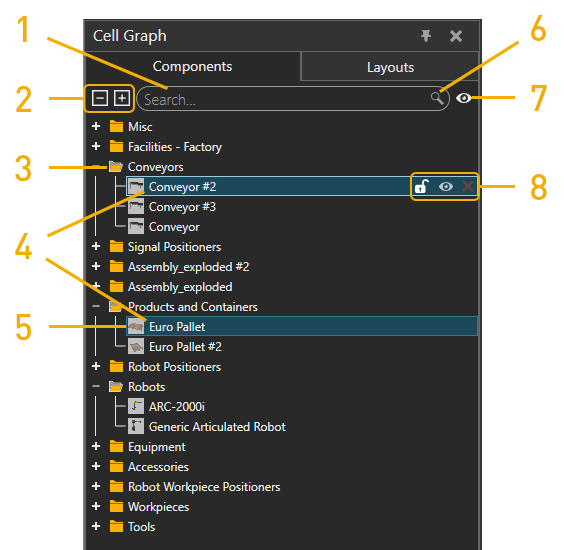

The Components tab lists components of the current Layout in the 3D world and has options for selecting and editing listed items. The components are grouped according to the category of components.

1. Search for Components
2. Collapse/Expand all
3. Category of Component
4. Selected Components
5. Component Name
6. Filter Types for Search
7. Show/Hide invisible Components in 3D World

8. Buttons for:

   • Lock/Unlock Editing of Component
   • Show/Hide Component
   • Delete Component

   Note: These can be applied to either a whole group of components or to a single component.
