Download settings

NOTE: This topic is only applicable to the following Robotics OLP products:

• Visual Components Premium OLP
• Visual Components Professional OLP
• Visual Components Robotics OLP

Robot

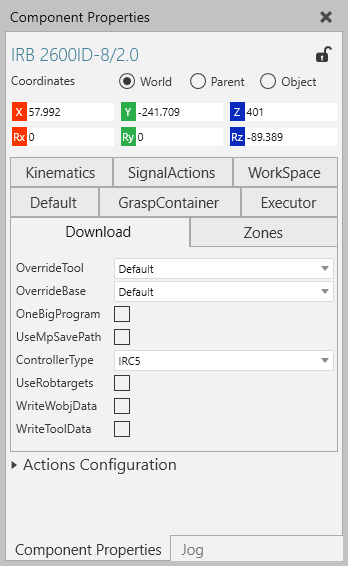

After translating the robot program at a first time, Download tab will appear to the robot Component properties (click the robot to see the Component properties panel. Note that the panel can be below some other panel).

In download settings you can define, what commands and information you want to have in the translated robot program. Most of the download parameters are robot brand specific.

Positioners

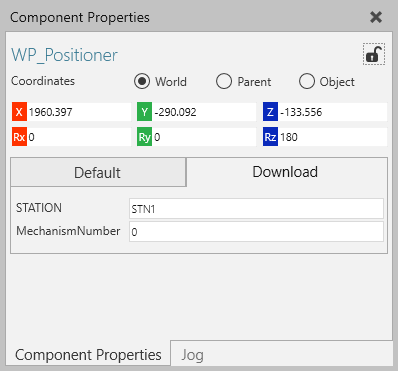

Also, the robot and workpiece positioners have download settings at Component properties panel.

STATION: Station name, which appears in the translated program as an active station.

MechanismNumber: Position of this mechanism in the definition of external axis joint values.
