Output

The Output panel is your main feedback area for simulation events, warnings, and errors.

The messages are categorized into:

• Errors: Issues that prevent the application from continuing to function.
• Warnings: Issues that don't stop the application but indicate potential problems or unexpected situations.
• Info: General  operational messages that track the progress or state of the application

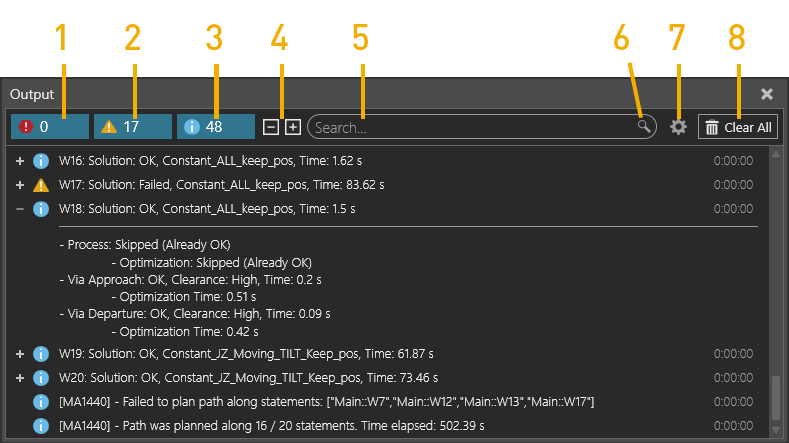

How to use the Output panel:

• Filter messages by type using tabs (1), (2), or (3).
• Expand or collapse messages:
  • Click +/- next to a message.
  • Use expand all / collapse all buttons (4).
• Search messages:
  • Enter a keywork in the search bar (5).
  • Click the search icon (6) for advanced search options.
• Adjust settings:
  • Click the gear icon (7) to open Output panel settings.
• Click Clear All (8) to remove all messages.
