Spot path Importer options

NOTE: This topic is only applicable to the following Robotics OLP products:

  • Visual Components Premium OLP
  • Visual Components Professional OLP
  • Visual Components Robotics OLP

Spot importer contents and their explanation.









Keyword name

Default value

Unit

Description

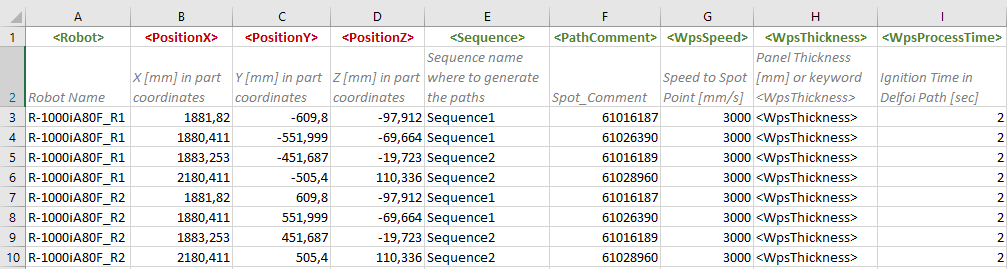

<PositionX>



mm

Spot Point X-coordinate value in part coordinates

<PositionY>



mm

Spot Point Y-coordinate value in part coordinates

<PositionZ>



mm

Spot Point Z-coordinate value in part coordinates

<Robot>

active robot in layout

string

Robot Name in layout if csv file contains spot data for multiple robots

<Sequence>

active sequence in layout

string

Sequence name where to generate the paths

<PathComment>



string

Comment for path

<WpsSpeed>



mm/s

Motion speed to spot point

<WpsThickness>

<WpsThickness>

mm

Panel thickness (can  be automatically measured from the model)

<WpsProcessTime>



sec

Spot Weld process time (for simulation purposes)

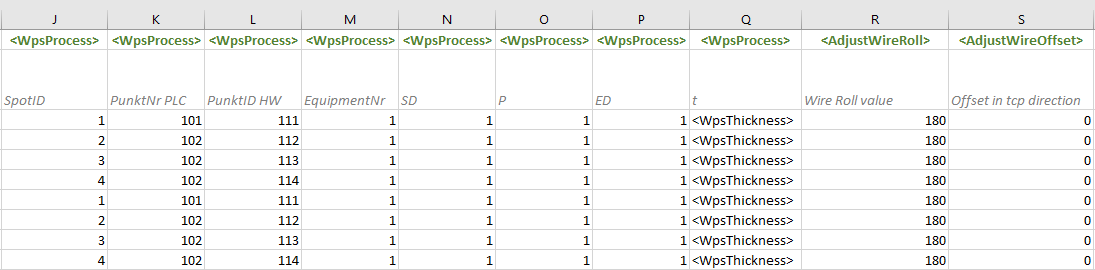

<WpsProcess>



sting

WPS process parameter, CSV can have multiple columns with this keyword. Second row in CSV will define process parameter name

<AdjustWireRoll>



angle

Rotation over TCP

<AdjustWireOffset>



mm

Offset in TCP direction

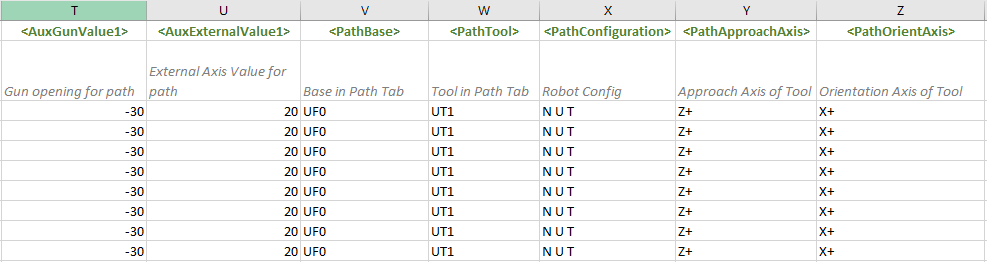

<AuxGunValue1>



mm or angle

Spot Gun opening for path, also <AuxGunValue2> available

<AuxExternalValue1>



mm or angle

External Axis Value for path, AuxExternalValue1…AuxExternalValue12 available

<PathBase>



String

Robot Base definition for Path

<PathTool>



String

Robot Tool definition for Path

<PathConfiguration>



String

Robot Configuration definition for path

<PathApproachAxis>



String

Approach Axis of Tool (TCP)

<PathOrientAxis>



String

Orientation Axis of Tool (TCP)

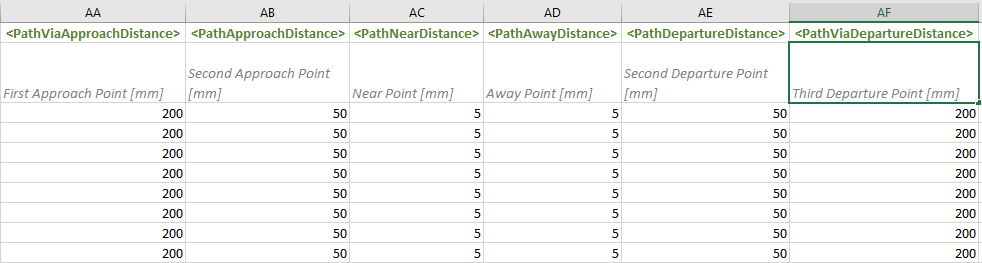

<PathViaApproachDistance>



mm

First Approach Point [mm], if cell is empty, the point is not generated

<PathApproachDistance>



mm

Second Approach Point [mm], if cell is empty, the point is not generated

<PathNearDistance>



mm

Near Point [mm], if cell is empty, the point is not generated

<PathAwayDistance>



mm

Away Point [mm], if cell is empty, the point is not generated

<PathDepartureDistance>



mm

Second Departure Point [mm], if cell is empty, the point is not generated

<PathViaDepartureDistance>



mm

Third Departure Point [mm], if cell is empty, the point is not generated
